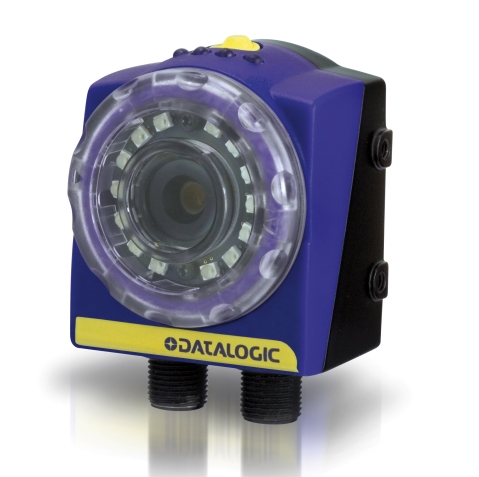

Data VS2
•使用以太網通過PC進行靈活直觀的設置
•存儲20個檢查
•14種不同的元件
•專業模型的360°輪廓匹配
•邏輯運算符：AND，OR，NOT，NAND，NOR，ecc。
•TURBO模式使加工速度加倍
•VSM兼容性
•檢查和識別功能 在專業型號上可用
Basic(OBJ)' Advanced(AOR)' Identification(ID)' Professional(PRO)•使用以太網通過PC進行靈活直觀的設置
•存儲20個檢查
•14種不同的元件
•專業模型的360°輪廓匹配
•邏輯運算符：AND，OR，NOT，NAND，NOR，ecc。
•TURBO模式使加工速度加倍
•VSM兼容性
•檢查和識別功能 在專業型號上可用
| Power supply: | 24 Vdc ±10 % |
| Ripple: | 1 Vpp max with illuminator 2 Vpp without illuminator |
| Consumption: | 100 mA at 24 Vdc (without illuminator) |
| Output type: | 3+1 PNP |
| Output current: | 100 mA max |
| Saturation voltage: | < 2 V |
| Network interface: | M12 4-pole Ethernet 10/100 Mbs |
| Serial interface: | RS232 (only ID and PRO models) |
| External illuminator interface: | Strobe signal (24 V PNP N.O.) |
| Frame rate: | 60 fps |
| Optics: | integrated (6 mm / 8 mm / 12 mm / 16 mm) |
| Illuminator: | Red or Infrared |
| Setting: | TEACH push-button |
| Indicators: | 4 LED |
| Connections: | M12 8 pole A-code M12 4 pole D-code |
| Mechanical protection: | IP50 |
| Protection devices: | A, B |
| Housing material: | aluminium alloy / ABS |
| Weight: | 125 g |
| Operating temperature: | -10 ... +50°C |
| Storage temperature: | -25 ... +70°C |
